Mast Archer Ultra - Wireless Tattoo Machine - Grey

The Dragonhawk Mast Archer Ultra provides a fully wireless setup designed for artists seeking precision, efficiency, and mobility. This complete system includes a high-performance wireless machine with a fixed 4.5 mm stroke, the Mshield intelligent power supply, and a charging dock capable of charging both units simultaneously. Bluetooth connectivity supports wireless control and customisation through the Dragonhawk Mast app.

At the core of the Archer Ultra is a custom Mcore brushless motor with a stacked PCB design that maintains consistent power output while reducing heat buildup. This supports smooth colour packing and stable lining performance. The fixed 4.5 mm stroke delivers strong pigment saturation and improved retention in fewer passes. An internal stabilising system reduces vibration and noise for consistent operation during extended sessions. The streamlined, one-piece housing features an ergonomic grip suitable for long hours of work.

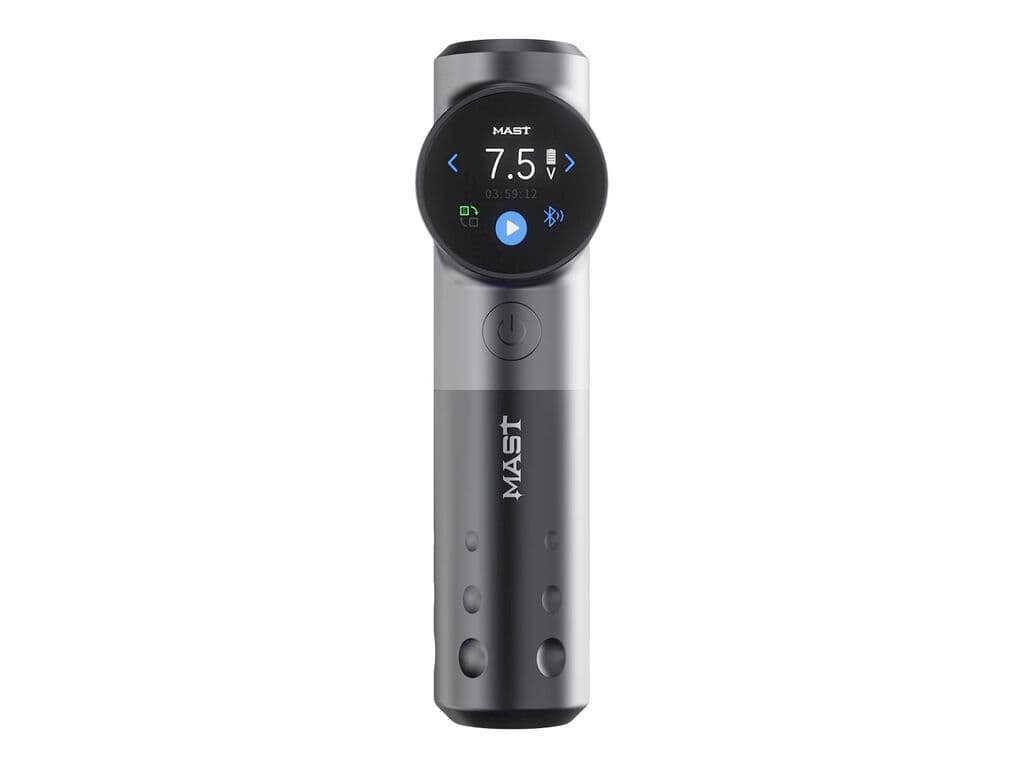

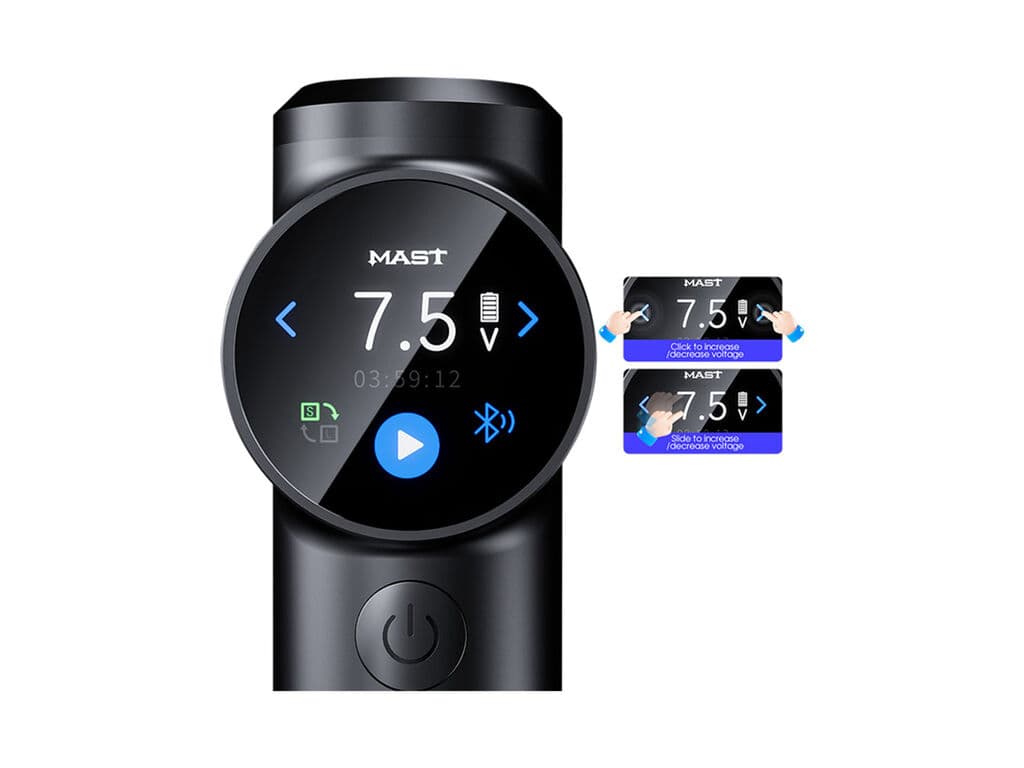

The machine is equipped with a 1.09-inch colour touchscreen that allows voltage adjustments through tap and swipe gestures, with physical buttons available for quick access. It runs on a 2300mAh lithium cobalt oxide battery that delivers up to 6.5 hours of runtime and recharges in 1.5 hours. This battery type offers up to three times the lifespan of standard models.

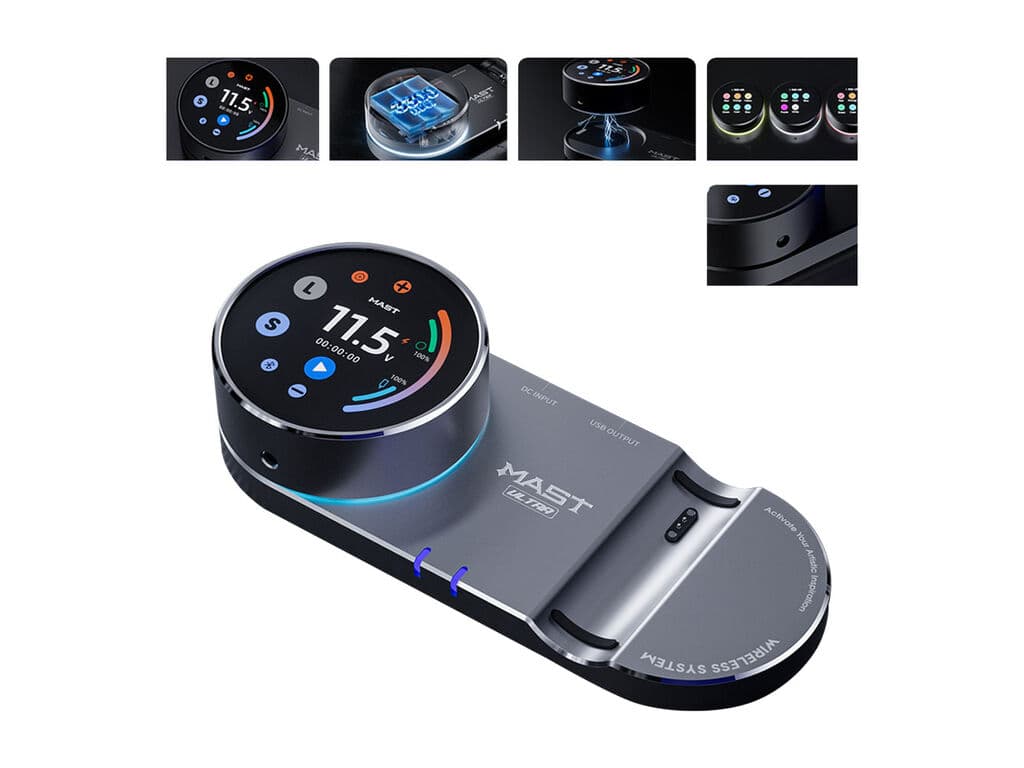

Paired with the Mshield wireless power supply, the system enables Bluetooth control, smart operating modes, and real-time adjustments via a 2.1-inch colour touchscreen. The Mshield is powered by a 3300mAh battery, providing up to 5 hours of runtime. A 3.5 mm output allows for optional wired operation. The magnetic base secures the unit to any work surface.

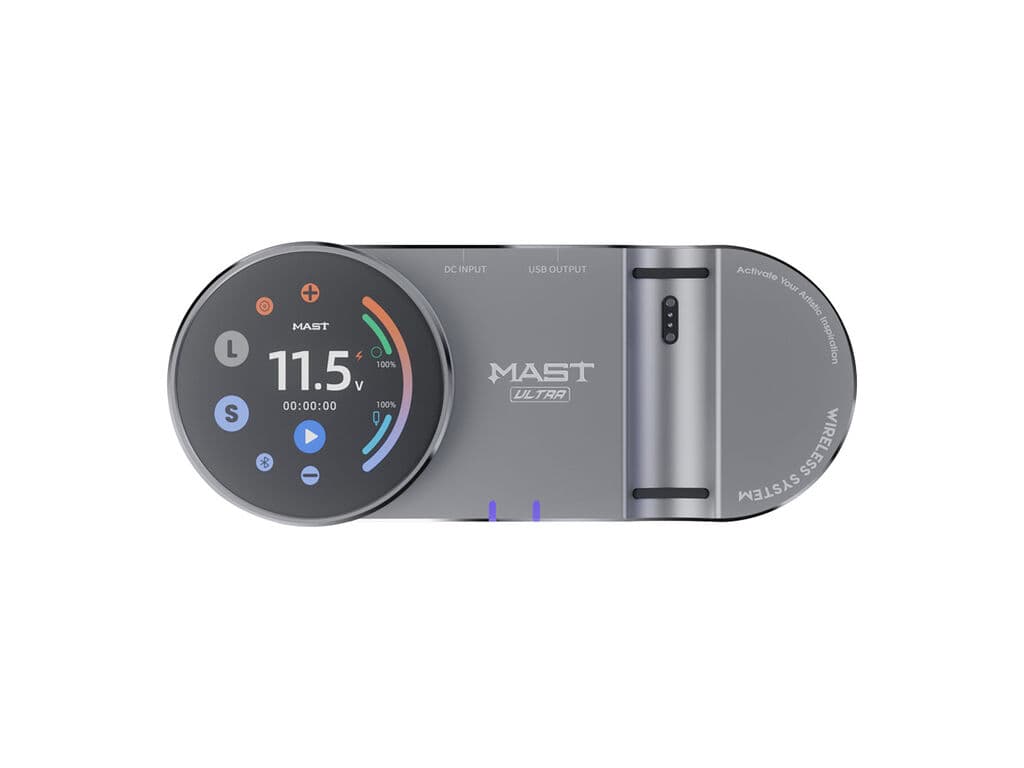

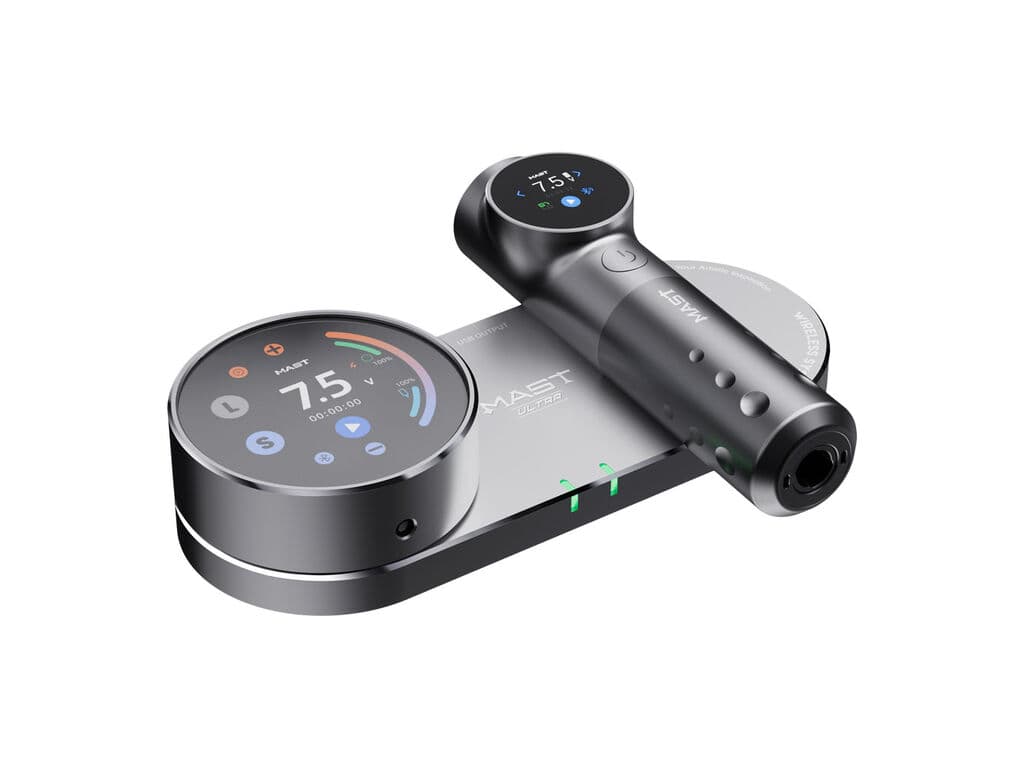

The included charging dock enables fast charging for both the machine and power module. A 10-minute charge provides approximately 1 hour of use, and a full charge supports up to 6.5 hours of operation. A built-in USB port allows for charging additional devices or accessories.

Key Features:

• Fully wireless setup with Bluetooth connectivity and app integration
• Mcore brushless motor with stacked PCB for consistent power and low heat
• Fixed 4.5 mm stroke for solid lines and high pigment saturation
• 1.09-inch colour touchscreen with gesture and button-based controls
• 2300mAh lithium cobalt oxide battery with extended lifespan and up to 6.5 hours runtime
• Mshield power supply with 2.1-inch display and smart operating modes
• Fast-charging dock supports simultaneous charging of both units
• 10-minute quick charge provides up to 1 hour of use
• USB port for charging accessories or backup devices
• Reduced vibration and noise for steady performance during long sessions
• Magnetic base for stable placement on work surfaces

Technical Specifications:

Machine

• Stroke Length: 4.5 mm
• Working Voltage: 4-12V
• Battery Capacity: 2300mAh
• Estimated Runtime: Up to 6.5 hours
• Charging Time: 1.5 hours
• Grip Size: 32 mm
• Length: 142 mm
• Weight: 217 grams

Mshield Power Supply

• Output Voltage: 4-12V
• Battery Capacity: 3300mAh
• Estimated Runtime: Up to 5 hours
• Charging Time: 3.5 hours
• Dimensions: 28 mm × 76 mm
• Weight: 151 grams

Charging Dock

• Output Voltage: 4-12V
• Dimensions (LxWxH): 187 mm × 76 mm × 16 mm
• Weight: 183 grams
