Mast Fold Pro - Wireless Tattoo Machine - Combo Pack - Year of the Horse

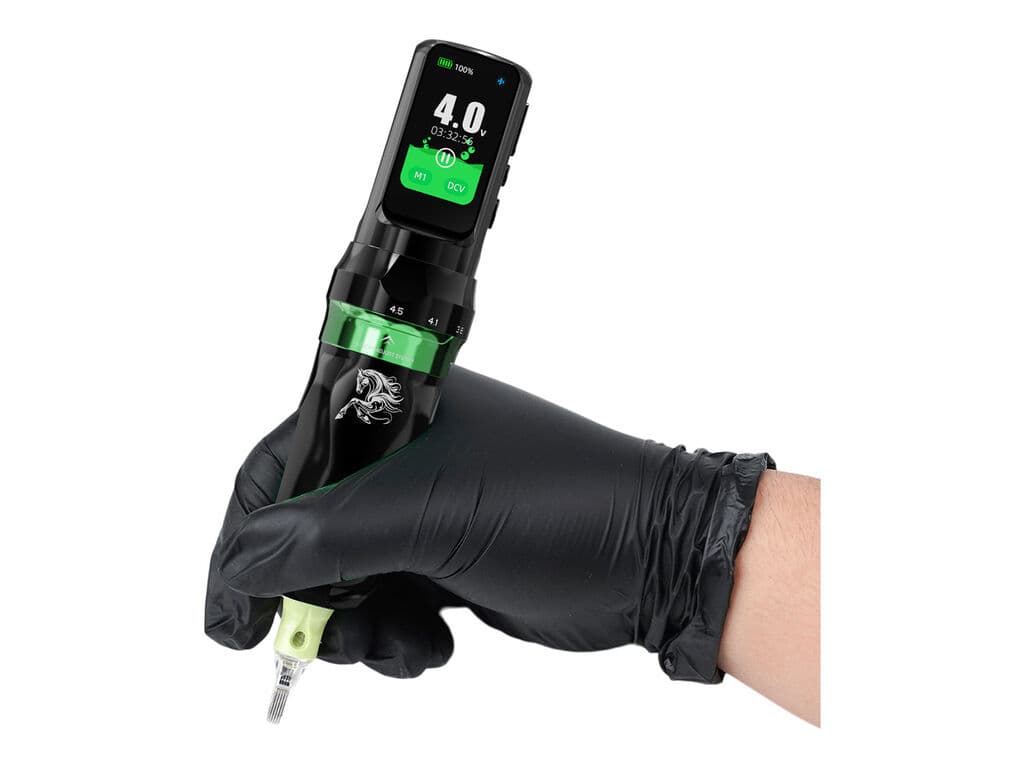

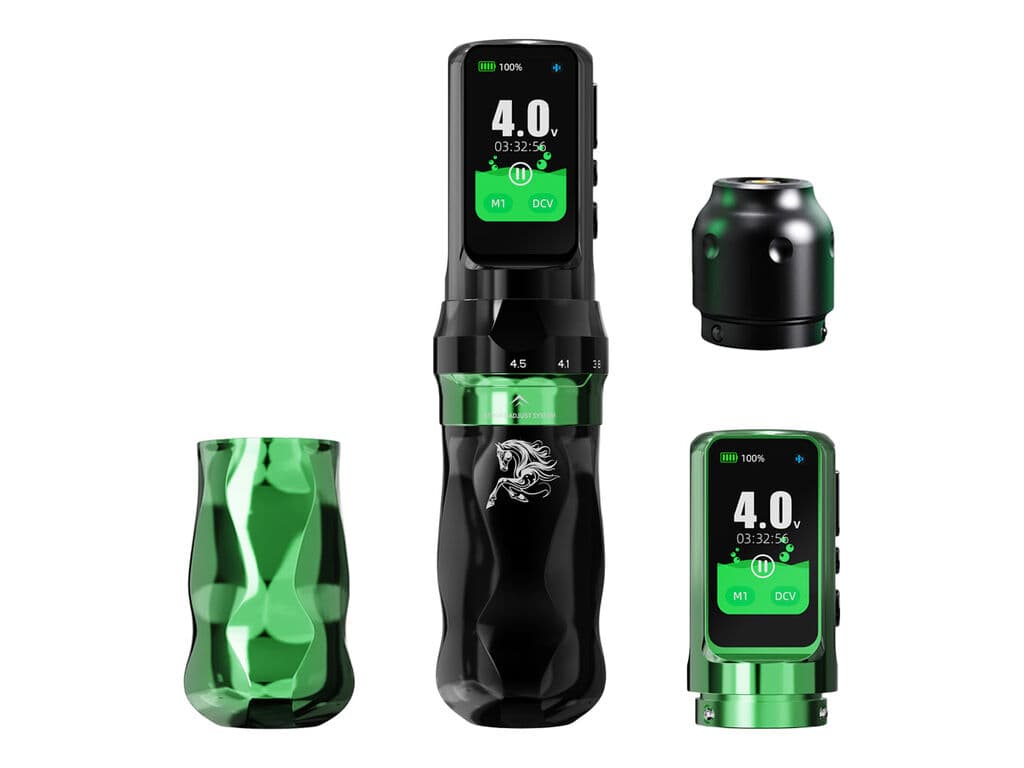

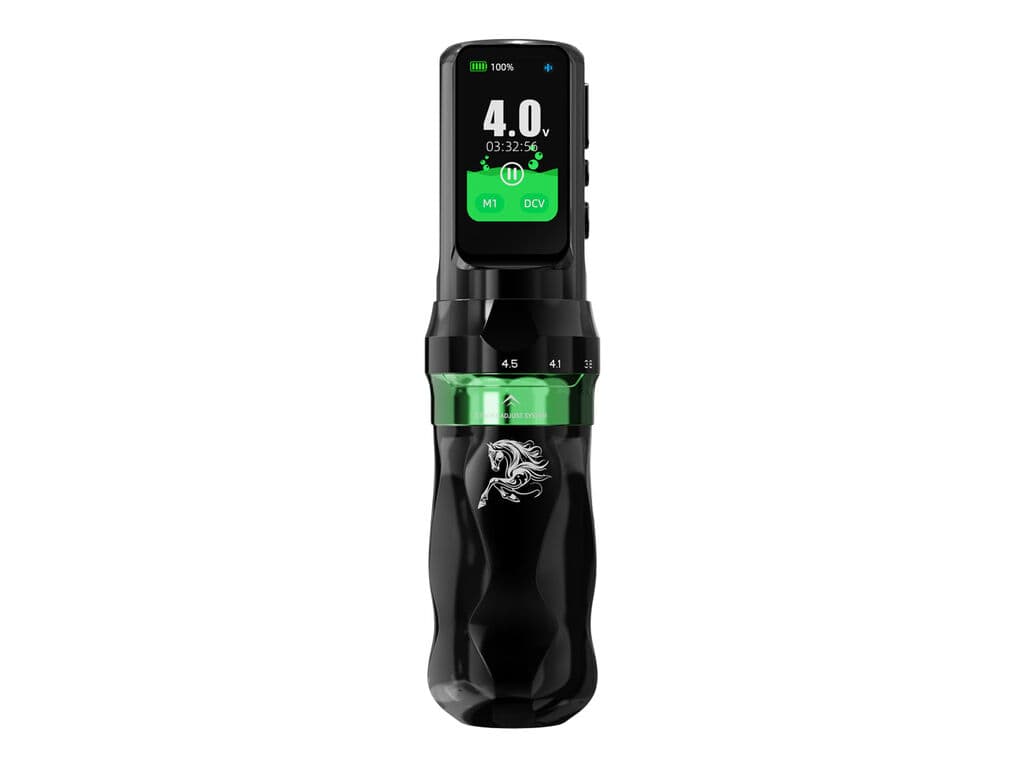

The Year of the Horse Edition Mast Fold Pro is a limited edition wireless tattoo machine for professional artists, featuring an upgraded Mcore-C4 coreless motor, an adjustable stroke range from 2.5 to 4.5 mm, and a dual-mode control system supporting both voltage and frequency operation. Powered by interchangeable 2500mAh batteries, the machine is suited for consistent performance in both studio and mobile environments. The set is presented in a collector's box with an exclusive green and black finish.
At the core of the machine is the Mcore-C4 coreless motor, delivering up to 40 percent more power than previous generations. The motor is optimised for longer stroke settings, particularly 4.5 mm, supporting clean line work and dense colour packing while maintaining smooth and stable performance across different tattooing techniques.
The Mast Fold Pro features a seven-step adjustable stroke system ranging from 2.5 mm to 4.5 mm. Stroke length can be adjusted directly on the machine, allowing artists to move efficiently between fine lining, soft shading, blending, and solid colour packing without changing machines or additional tools. It is compatible with all standard Cheyenne-type needle cartridges and includes an automatic start-up function to support hard-starting cartridges.

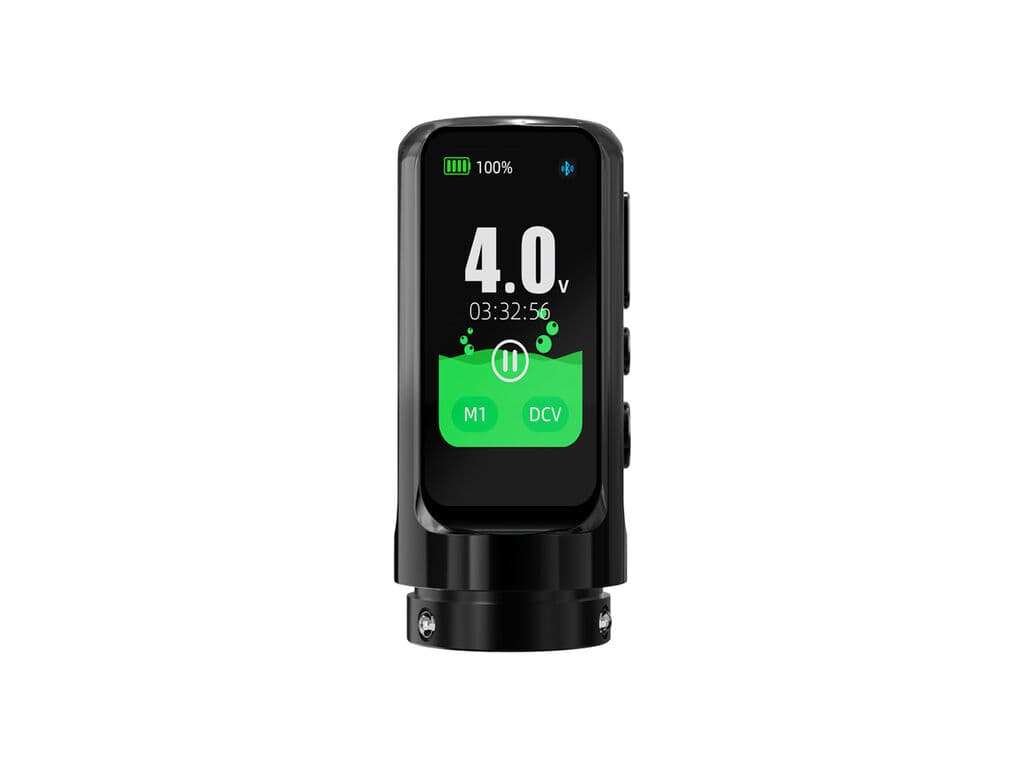

This model incorporates a dual-mode control system, allowing operation in voltage mode from 4 to 12 volts or frequency mode from 3 to 90 Hz. Switching between modes is done via a double-click function, while five fine adjustment steps enable precise tuning for reliable and repeatable results. A side-mounted OLED display provides real-time information, including working voltage or frequency, remaining battery capacity, and total operating time.
Power is supplied by a high-density 2500mAh lithium battery with an integrated MastLabs intelligent chip, offering up to 30 percent longer runtime compared to standard batteries of the same capacity. Each battery delivers approximately 4 to 6 hours of continuous operation, with a charging time of around 100 minutes. Two batteries are included to support uninterrupted sessions, and the machine can also be used in wired mode via the included RCA adapter.
Designed for comfort during extended tattoo sessions, the Mast Fold Pro maintains low vibration levels and balanced weight distribution. Two interchangeable grips, 36 mm and 39 mm, are included to accommodate different hand sizes and working preferences. With the 36 mm grip and battery installed, the machine weighs 228 grams, helping reduce hand fatigue during prolonged use.

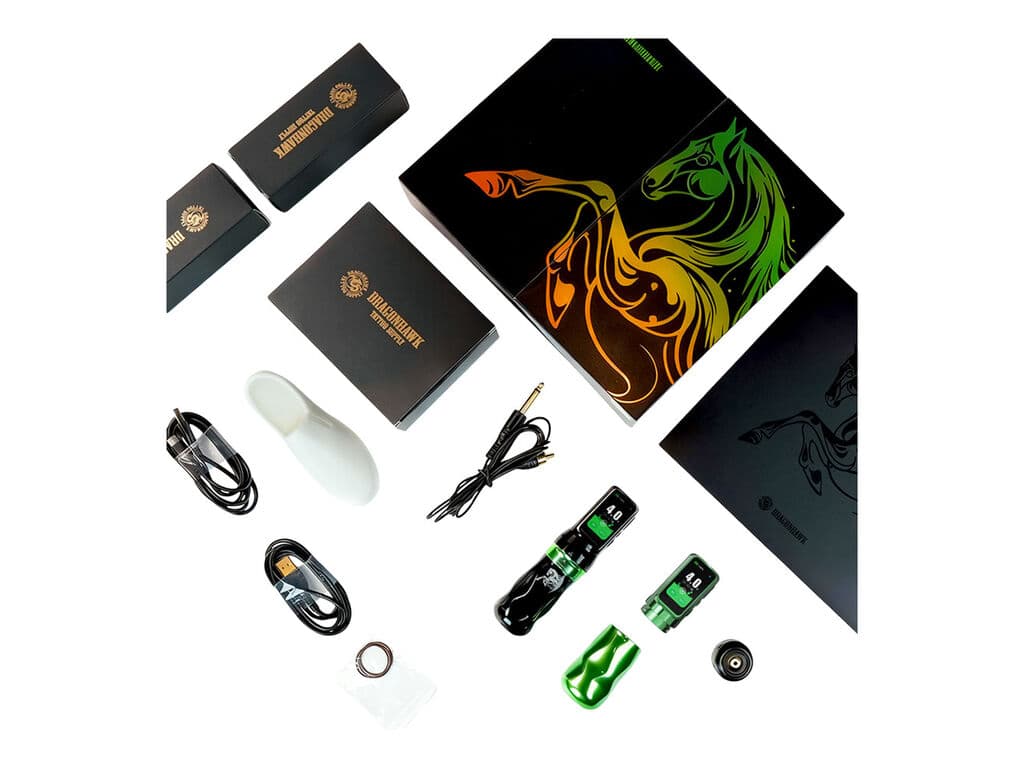

What's included in this set:
- 1x Dragonhawk Mast Fold Pro Machine
- 2x Dragonhawk Mast Fold Pro Wireless Battery Packs (one black and one green)
- 1x 36 mm grip (Green)
- 1x 39 mm grip (Black)
- 1x RCA adapter
- 1x RCA cable
- 2x USB-C to USB-A Charging Cables
- 1x Small Bag with spare o-rings

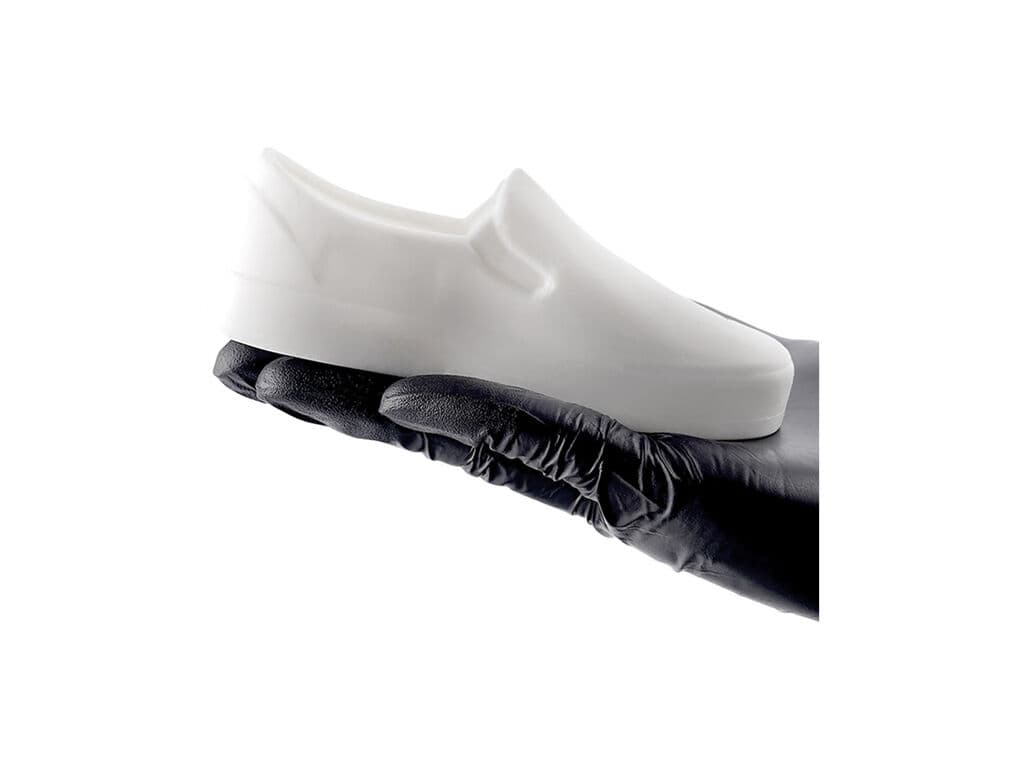

- 1x Tattooable practice shoe model
Key Features:
- Adjustable stroke length with 7 settings (2.5 to 4.5 mm)
- Upgraded Mcore-C4 coreless motor, smooth and stable output
- Dual control modes, voltage mode (4-12 V) or Frequency mode (3-90 Hz)
- Precise voltage control with fine adjustment (0.1 V increments)
- Side-mounted OLED display with real-time working information
- Wireless and wired operation via the included RCA adapter
- Automatic start-up function to support hard-starting needle cartridges
- Universal compatibility with standard Cheyenne-type needle cartridges
- Click-action grip for precise needle depth adjustment
Technical Specifications:
- Stroke length: (2.5 / 2.9 / 3.2 / 3.5 / 3.8 / 4.1 / 4.5 mm)
- Motor: Mcore-C4 coreless motor
- Motor speed: 9000 RPM ±10 percent at 12 V
- Battery: 2 x 2500mAh lithium batteries
- Working time: Approximately 4 to 6 hours per battery
- Charging time: Approximately 100 minutes
- Grip size: 36 mm or 39 mm
- Length: 142 mm with battery installed, 115 mm with RCA adapter
- Weight: 228 grams with 36 mm grip and battery installed
