Mast Tour Y22 Pro - Wireless Tattoo Machine - White
Dragonhawk Mast Tour Y22 Pro is a compact wireless tattoo machine designed for precision, power, and streamlined operation. This pen-style device features Dragonhawk’s next-generation MCore motor, which delivers consistent power and torque, even at lower voltage and frequency levels. Suitable for a wide range of techniques and styles, the Y22 Pro offers excellent performance in a lightweight and ergonomic form.
The Y22 Pro includes Bluetooth functionality for integration with the Dragonhawk app, providing added control and customization. It is powered by a wireless battery pack managed by the MastLab battery control system, which features a jump-start option for handling large needle cartridge setups. Needle depth is adjusted by rotating the click-action grip, and the machine is compatible with all universal Cheyenne-type needle cartridges.

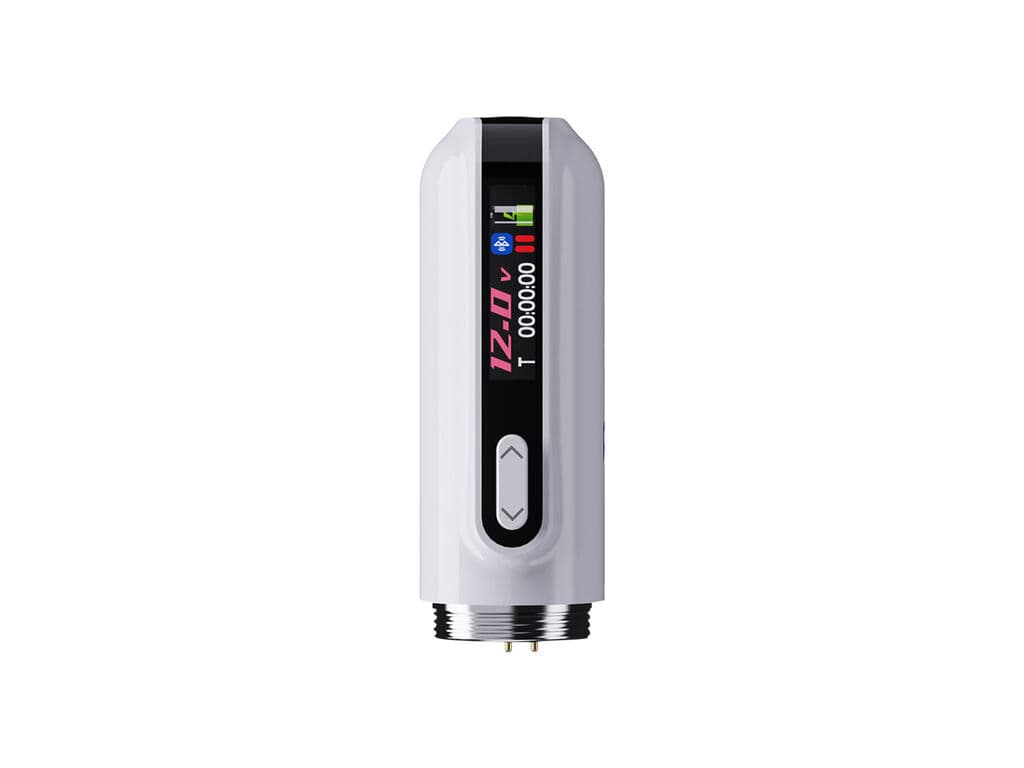

An LED display on the front of the machine shows real-time voltage or frequency settings, along with battery life. Control buttons below the screen allow for quick adjustments and mode switching, with the machine supporting both voltage and frequency modes. Powered by a 1300mAh lithium battery, the machine operates within a voltage range of 4-12V (3-90Hz) and provides up to 6 hours of runtime, depending on usage. A full charge takes approximately 3.5 hours with the included USB-C cable.

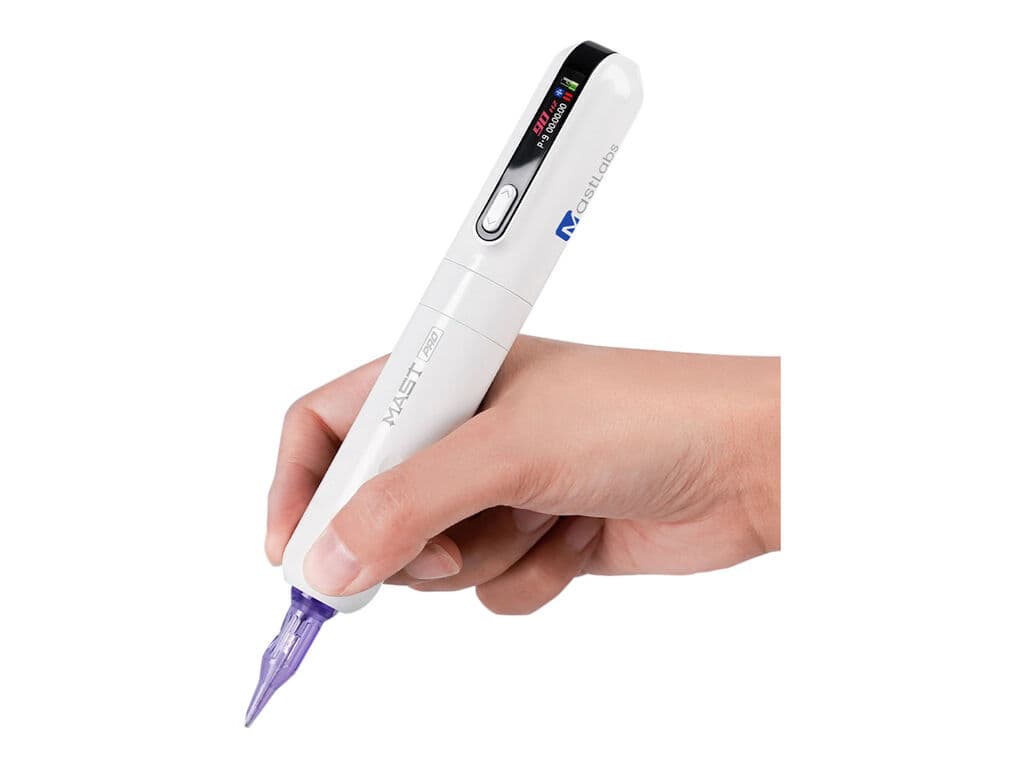

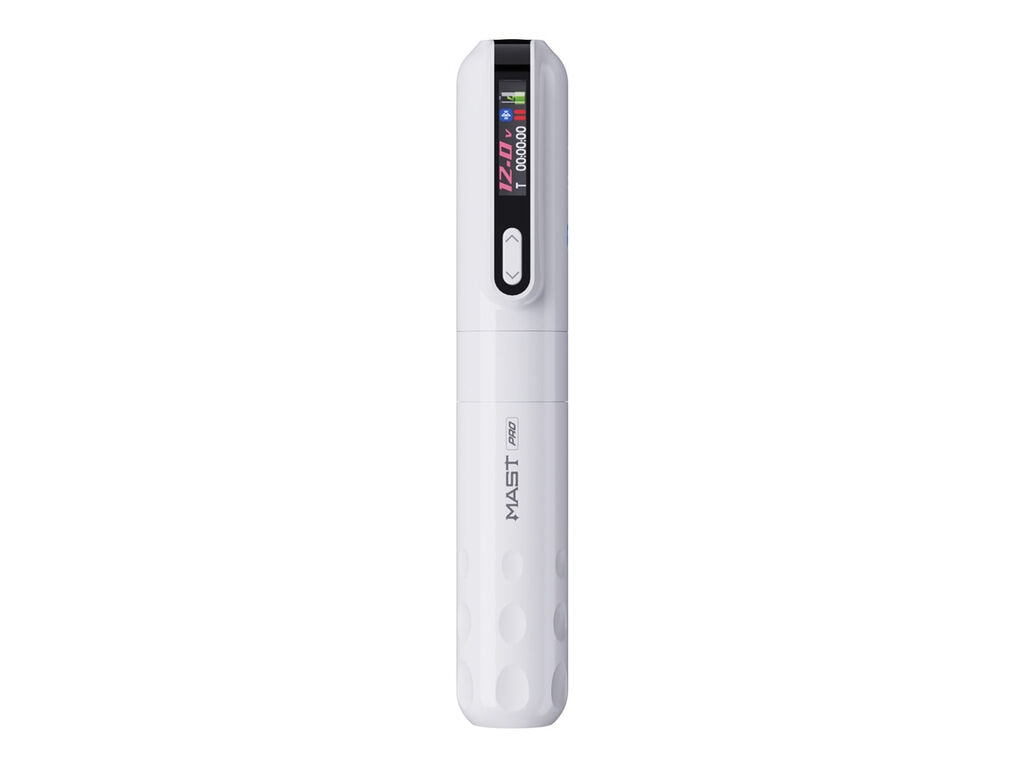

The Mast Tour Y22 Pro features a slim, pen-style design with ergonomic cutouts for comfort during extended use. It measures 146 mm in length (with the battery attached), has a diameter of 26 mm, and weighs 126 grams including the battery.
Key Features:
- Compact, ergonomic pen-style design for extended comfort
- Next-generation MCore motor provides consistent power at lower voltages and frequencies
- Bluetooth-enabled for compatibility with the Dragonhawk app
- Dual operating modes: switch between voltage and frequency
- Jump-start feature supports large cartridge configurations
- Click-action grip for easy needle depth adjustment
- Compatible with universal Cheyenne-type needle cartridges
- Up to 6 hours of battery life, depending on usage
- Precision voltage adjustment in 0.1V increments
- USB-C charging cable included
Technical Specifications:
- Stroke length: 3.5 mm
- Working voltage: 4-12V
- Grip size: 26 mm
- Length: 146 mm
- Weight: 126 grams
- Battery capacity: 1300mAh
